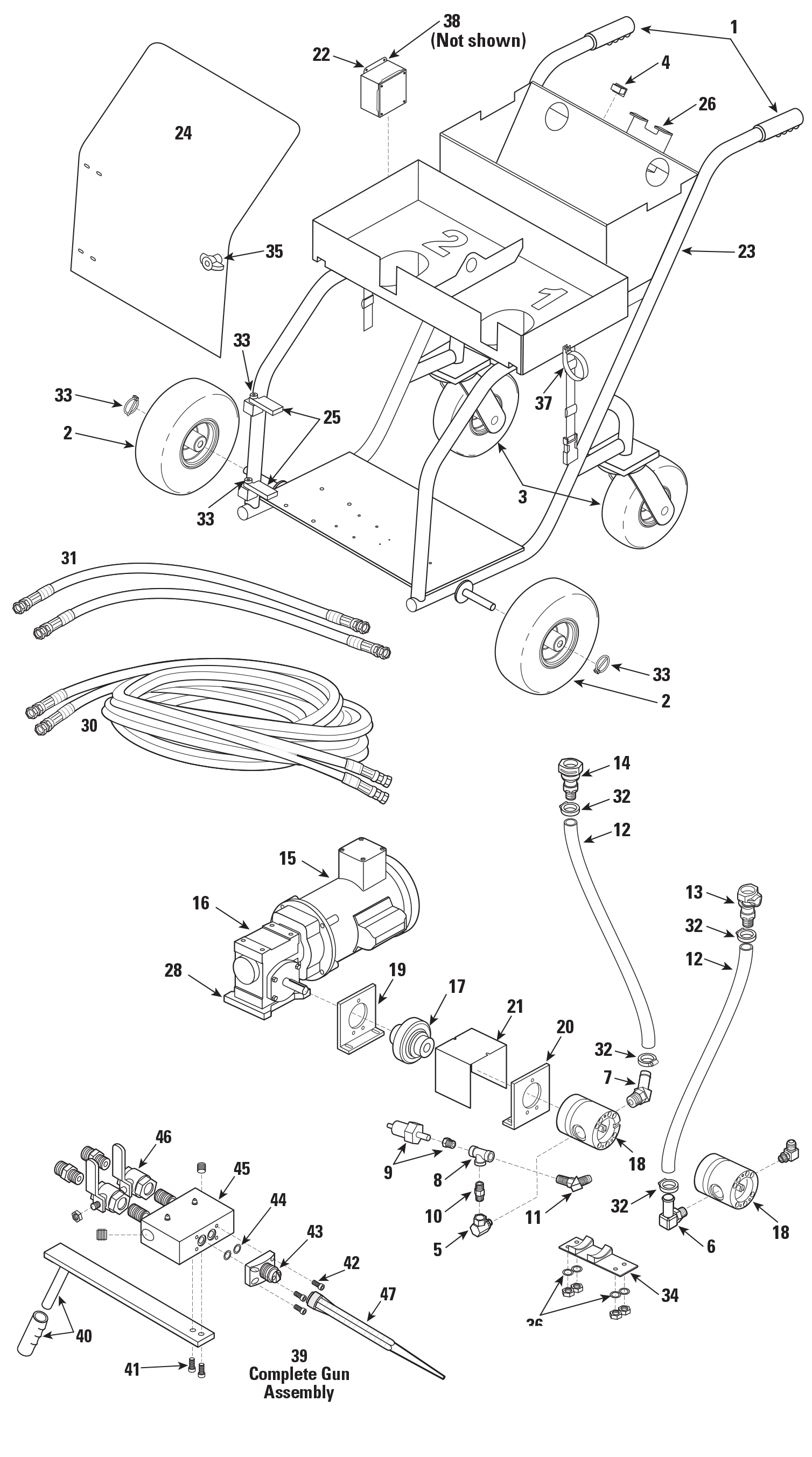

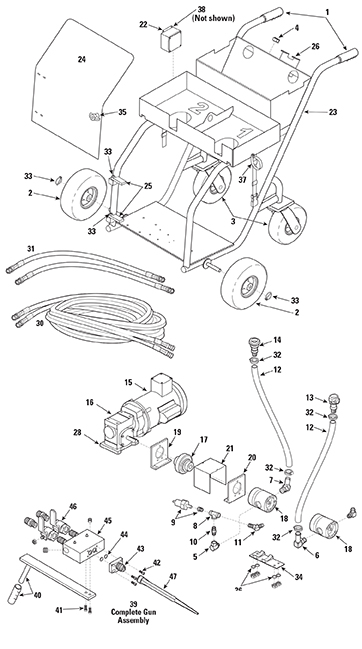

PACECART 2 PARTS

(click to zoom)

Browse Our List to find the manual or part that you need

Ref.	Part	Description	QTY.
	1	1.25" Handle Grip (2)
	OBPC-FOAMTIRE	Front Foam Tire (2)
	OBPC-CASTER	Foam Casters rear (2)
	4	On Off Switch (Ref)
	OBPCART2-FITKIT	90 degree swivel male ORB and female NPT
	OBPCART2-FITKIT	90° hose barb and male ORB
	OBPCART2-FITKIT	45° hose barb and ORB
	OBPSWITCHKIT	TEE 1/2" NPT (x3)
	OBPSWITCHKIT	Pressure Switch
	OBPSWITCHKIT	Hex Reducer 1/2 inch Male NPT and 1/4 inch Female NPT
	OBPSWITCHKIT	45° 1/2 " NPT x 1/2 " JIC
	OB17GRAVHOSE	Tygon Hose (2)
	OBCONKIT	Black Connector Part 1
	OBCONKIT-GRAY	Gray Connector Part 2
	OBPC2B-MOTOR	Baldor Motor VI3504 1/2 hp
	16	Dodge Gear Box
	OBPC2B-CLUTCH	Clutch
	OB213PUMP	Pump Chemical 5.2cc (2)
	19	Pump L Bracket
	20	Pump L Bracket Slotted
	21	Clutch Guard
	22	J-Box (ref)
	23	Main Frame PaceCart
	24	Hood
	25	Hinge (2)
	26	Gun Mount
	27	Hinge Mount Bolt (2)
	28	Gearbox Base Plate
	OBPCART2-FITKIT	90° 1/2" JIC x 3/8" ORB
	OB500HOSE-30	30ft Hose with 1/2" JIC Female Ends (2)
	OB18WHIP	36" Whip Hose 1/2" Male JIC x 1/2" Female JIC (2)
	32	1" Hose Clamp (2)
	33	Hitch Pin for Wheel (2)
	34	Pump Support F/E with Clamp
	35	SouthCo Knob
	36	Pump Bracket Spacer (4)
	37	1.5" Hose Clamp
	OBPC-CONRELAY	Contact Relay
	OB500PCARTGUN	Complete Gun Assembly
	OB07HANDLE	Handle
	OB10LSCREW	Screw (2)
	OB09SCREW	Screw (4)
	OB02NOZTIP	Nozzle Tip
	OB12ORING	O Ring (2)
	OB01MANIFOLD	Manifold
	OB05VALVE	Ball Valve (2)
	OB500MIXTIP-20	Mix Tips (Bundle of 20)
