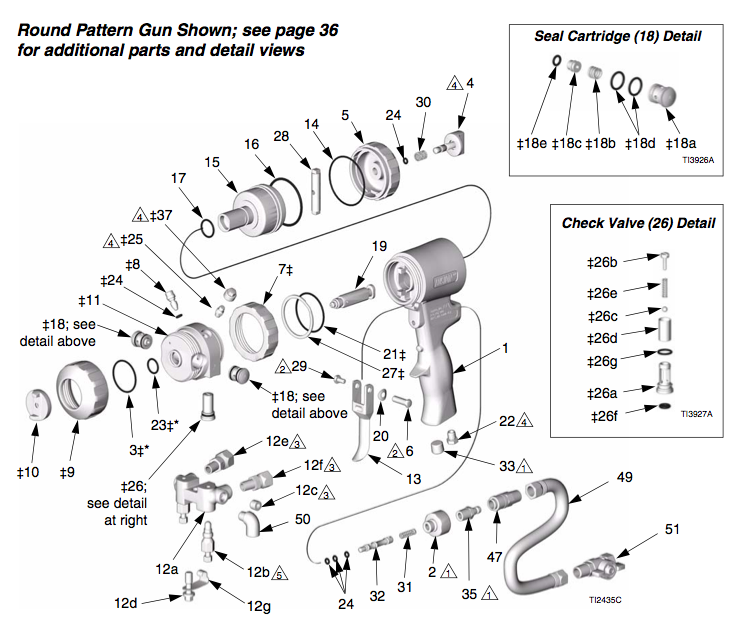

| Ref. |
Part |
Description |
QTY. |
| ◊ |
248414 |
Spatter Tip Kit (includes all parts marked with ◊) |
|
|
|
Bead Tip/Kit (NOT SHOWN) |
|
| 1 |
15K365 |
HANDLE |
|
| 2 |
15B208 |
PLUG, air valve |
|
| 3 |
248137 |
O-RING; PTFE; package of 6 |
|
| 4 |
15B206 |
LOCK, safety |
|
| 5 |
15B204 |
CAP, cylinder |
|
| 6 |
192272 |
PIN |
|
| 7 |
15B215 |
RING, lock |
|
| 8 |
15B223 |
VALVE, cleanoff air |
|
| 9 |
15B211 |
RING, retaining |
|
| 10 ◊ |
15D973 |
AIR CAP, for spatter pattern gun; not included in Front End Replacement Kit 246361; |
|
| 11 |
246491 |
HOUSING, fluid |
|
| 12 |
246012 |
MANIFOLD, fluid, 2-hose; includes 12a-12g |
|
| 12 |
249523 |
MANIFOLD, fluid, 4-hose; includes 12a, 12b, 12d-12g, 50 |
|
| 13 |
15B209 |
TRIGGER |
|
| 14 |
248136 |
O-RING, cylinder cap; package of 6 |
|
| 15 |
15B203 |
PISTON |
|
| 16 |
248135 |
O-RING, piston; package of 6 |
|
| 17 |
248134 |
O-RING, piston shaft; package of 6 |
|
| 18 |
246349 |
CARTRIDGE, seal, A side, SST; includes 18a-18e |
|
| 18 |
246350 |
CARTRIDGE, seal, B side, SST; includes 18a-18e |
|
| 19 |
|
CHAMBER, mix, round |
|
| 19 |
|
CHAMBER, mix, flat |
|
| 20 |
15C480 |
WASHER, wave |
|
| 21 |
248132 |
O-RING; package of 6 |
|
| 22 |
119626 |
MUFFLER |
|
| 23 |
248131 |
O-RING; package of 6 |
|
| 24 |
246354 |
O-RING; package of 6 |
|
| 25 |
100846 |
FITTING, grease |
|
| 26 |
246731 |
VALVE, check, A side; includes 1 26a-26g |
|
| 26 |
246352 |
VALVE, check, B side; includes 1
26a-26g |
|
| 27 |
116550 |
RING, retaining |
|
| 28 |
15B205 |
STOP, piston |
|
| 29 |
203953 |
SCREW; 10-24 x 3/8 in. (10 mm) |
|
| 30 |
114070 |
SPRING |
|
| 31 |
117485 |
SPRING |
|
| 32 |
15B202 |
SPOOL, valve |
|
| 33 |
100721 |
PLUG, pipe; 1/4-18 npt; round and flat pattern guns only |
|
| 35 |
117509 |
QUICK-DISCONNECT, male, air; 1/4 npt(m); round and flat pattern guns only |
|
| 36 |
222385 |
CARD, warning; not shown |
|
| 37 |
15B689 |
COVER, grease fitting |
|
| 39 |
FTxxxx |
TIP, flat |
|
| 40 |
246360 |
O-RING; PTFE; flat tip models only; package of 3 |
|
| 43 |
117661 |
VISE, pin; dual reversible chucks |
|
| 46 |
117792 |
GREASE GUN; not shown |
|
| 47 |
117510 |
COUPLER, air line |
|
| 49 |
15B772 |
HOSE, air; 1/4 npsm (fbe); 18 in. (0.46 m) |
|
| 50 |
112307 |
ELBOW, street; 1/8 npt (m x f); round and flat pattern guns only |
|
| 51 |
15B565 |
VALVE, ball; 1/4 npt (m x f); round and flat pattern guns only |
|
| 52 |
15B817 |
MANIFOLD, gun flush; round and flat pattern guns only |
|
| 53 |
117642 |
NUT DRIVER, hex; 5/16 |
|
| 54 |
118575 |
SCREWDRIVER; 1/8 blade |
|
| 55 |
172479 |
TAG, warning; not shown |
|
| 56 |
15D235 |
SIGN, instruction; not shown |
|
| 57 |
117773 |
GREASE CARTRIDGE; 3 oz; not shown; MSDS sheet available at www.graco.com |
|
| 58 ◊ |
15D972 |
RETAINER, tip; spatter pattern gun only |
|
| 59 ◊ |
15D971 |
TIP; spatter pattern gun only |
|
| 60 ◊ |
248019 |
SEAL, package of 5; spatter pattern gun only. |
|
| 61 |
15F240 |
ADAPTER, stud wall |
|
| 62 |
15F854 |
PACKING, tip; stud wall |
|
| 63 |
15F241 |
CAP, air; stud wall |
|
| 64 |
FTM979 |
TIP, flat; stud wall |
|
