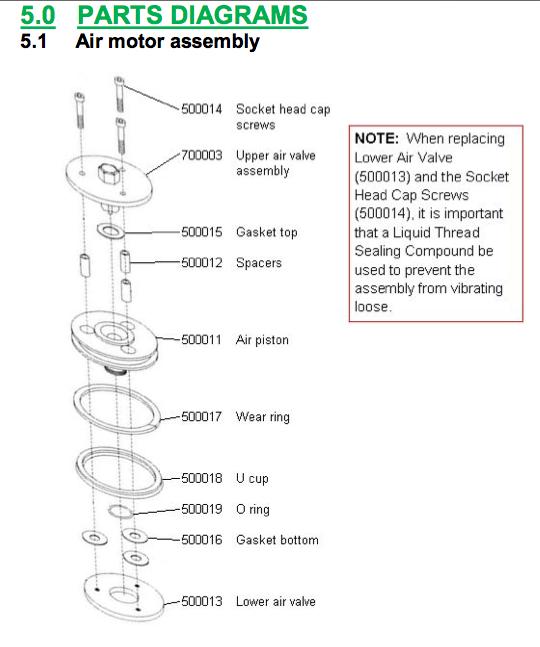

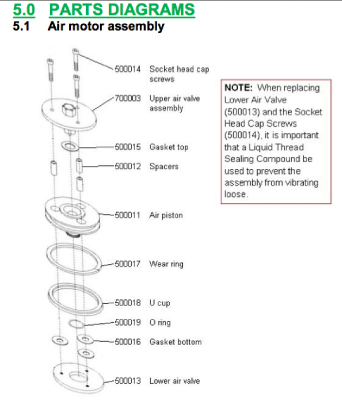

2:1 Ratio Transfer Pump | Air Motor Assembly



(click to zoom)

Ref. Part Description QTY.
500014 Socket head cap screws
700003 Upper air valve assembly
500015 Gasket top
500012 Spacers
500011 Air piston
500017 Wear ring
500018 U cup
500019 O ring
500016 Gasket bottom
500013 Lower air valve

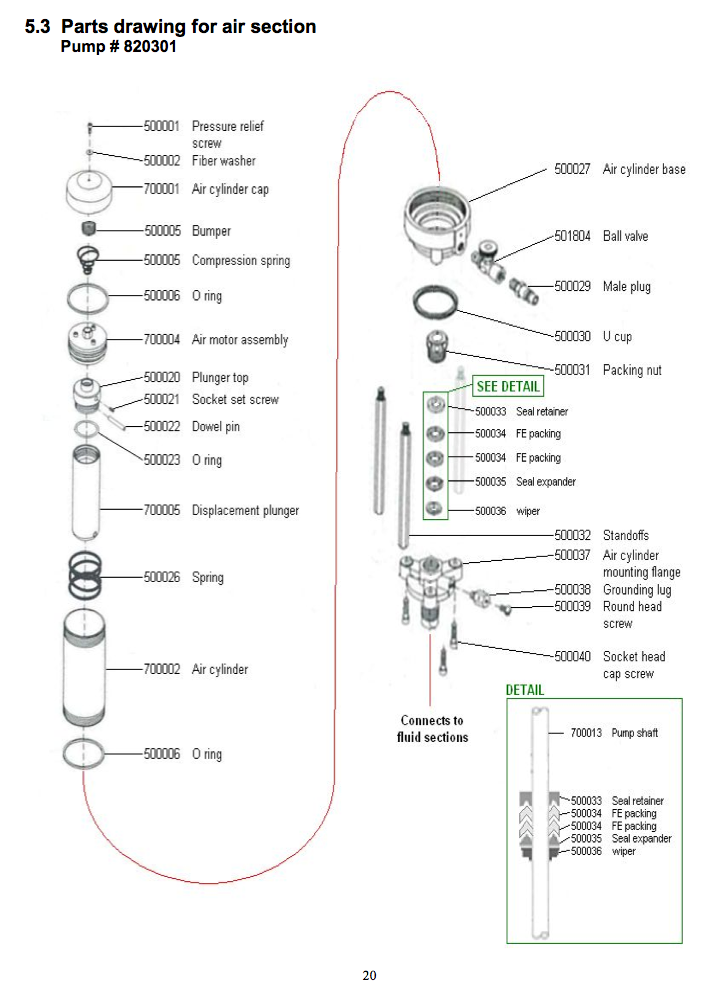

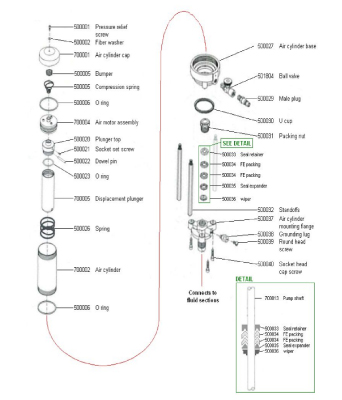

2:1 Ratio Transfer Pump | Air Section



(click to zoom)

Ref. Part Description QTY.
500001 Pressure relief screw
500002 Fiber washer
700001 Air cylinder cap
500005 Bumper
500005 Compression spring
500006 O ring
700004 Air motor assembly
500020 Plunger top
500021 Socket set screw
500022 Dowel pin
500023 O ring
700005 Displacement plunger
500026 Spring
700002 Air cylinder
500006 O ring
500027 Air cylinder base
501804 Ball valve
500029 Male plug
500030 U cup
500031 Packing nut
500033 Seal retainer
500034 FE packing
500034 FE packing
500035 Seal expander
500036 Wiper
500032 Standoffs
500037 Air cylinder mounting flange
500038 Grounding lug
500039 Round head screw
500040 Socket head cap screw
700013 Pump shaft

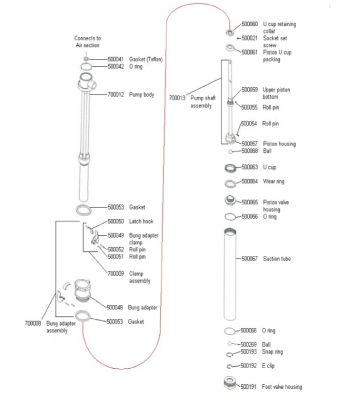

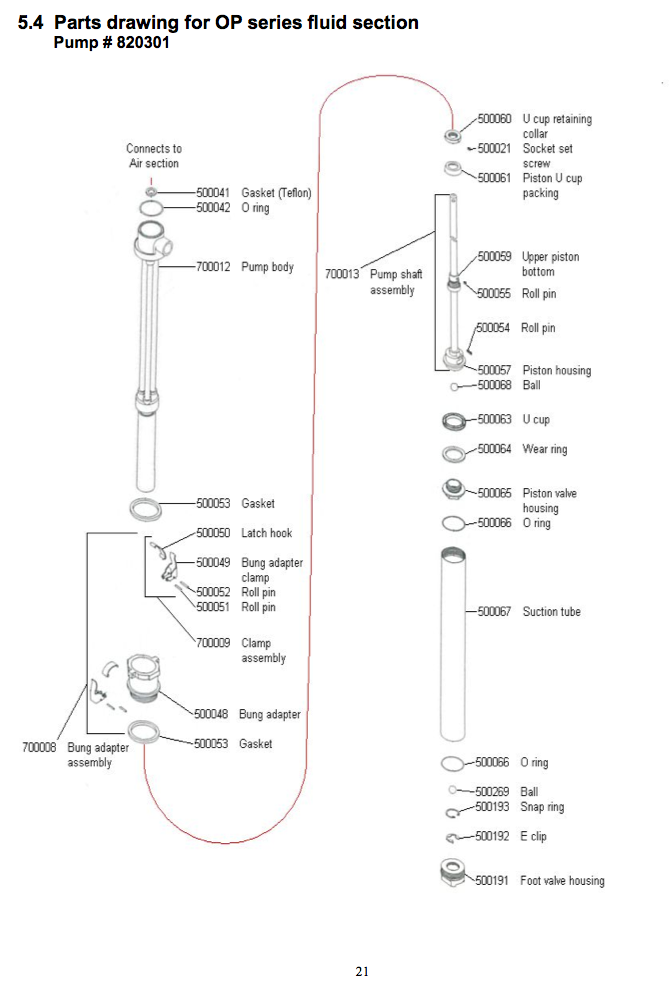

2:1 Ratio Transfer Pump | Fluid Section



(click to zoom)

Ref. Part Description QTY.
500041 Gasket (Teflon)
500042 O ring
700012 Pump body
500053 Gasket
500050 Latch hook
500049 Bung adapter clamp
500052 Roll pin
500051 Roll pin
700009 Clamp assembly
500048 Bung adapter
500053 Gasket
500060 U cup retaining collar
500021 Socket set screw
500061 Piston U cup packing
700013 Pump shaft assembly
500059 Upper piston bottom
500055 Roll pin
500054 Roll pin
500057 Piston housing
500068 Ball
500063 U cup
500064 Wear ring
500065 Piston valve housing
500066 O ring
500067 Suction tube
500269 Ball
500193 Snap ring
500192 E clip
500191 Foot valve housing
