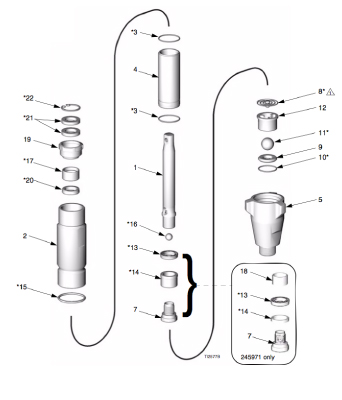

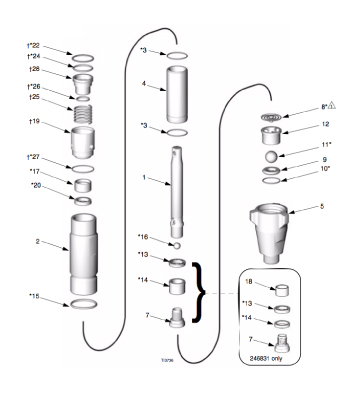

| Ref. |
Part |
Description |
QTY. |
| † |
246963 |
WET-CUP KIT (includes all parts marked with †) |
|
| * |
15C851 |
PUMP REPAIR KIT (includes all parts marked with *) |
|
| 1 |
240518 |
ROD, displacement; sst (246830) |
|
| 1 |
240517 |
ROD, displacement; sst (246831) |
|
| 1 |
246689 |
ROD, displacement; sst (246832) |
|
| 2 |
243346 |
CYLINDER, pump (246830) |
|
| 2 |
240520 |
CYLINDER, pump (246831) |
|
| 2 |
245413 |
CYLINDER, pump (246832) |
|
| 3 |
108526 |
O-RING; PTFE (246830) |
|
| 3 * |
107098 |
O-RING; PTFE (246831) |
|
| 3 |
108822 |
O-RING; PTFE (246832) |
|
| 4 |
240521 |
SLEEVE, cylinder; sst (246830) |
|
| 4 |
240525 |
SLEEVE, cylinder; sst (246831) |
|
| 4 |
240921 |
SLEEVE, cylinder; sst (246832) |
|
| 5 |
195892 |
HOUSING, valve, intake (246830) |
|
| 5 |
193030 |
HOUSING, valve, intake (246831) |
|
| 5 |
198219 |
HOUSING, valve, intake (246832) |
|
| 7 |
239932 |
VALVE, piston (246830) |
|
| 7 |
240150 |
VALVE, piston (246831) |
|
| 7 |
240580 |
VALVE, piston (246832) |
|
| 8 * |
245256 |
SPRING, intake ball (246832 only) |
|
| 9 |
239922 |
SEAT, intake; carbide (246830); includes items 10 and 11 |
|
| 9 |
244199 |
SEAT, intake; carbide (246831); includes items 10 and 11 |
|
| 9 |
240918 |
SEAT, intake; carbide (246832); includes items 10 and 11 |
|
| 10 |
107079 |
O-RING; PTFE (246830) |
|
| 10 * |
108526 |
O-RING; PTFE (246831) |
|
| 10 |
107098 |
O-RING; PTFE (246832) |
|
| 11 |
105445 |
BALL, intake; sst; 0.5 in. (13 mm) (246830) |
|
| 11 * |
102972 |
BALL, intake; sst; 0.875 in. (22 mm) (246831) |
|
| 11 |
107167 |
BALL, intake; sst; 1 in. (25 mm) (246832) |
|
| 12 |
192624 |
GUIDE, ball (246830) |
|
| 12 |
193027 |
GUIDE, ball (246831) |
|
| 12 |
193391 |
GUIDE, ball (246832) |
|
| 13 |
117450 |
SEAL, u-cup, piston; UHMWPE (246831) |
|
| 13 * |
117449 |
SEAL, u-cup, piston; UHMWPE (246831) |
|
| 13 |
117448 |
SEAL, u-cup, piston; UHMWPE (246831) |
|
| 14 |
15B078 |
BUSHING, piston (246830) |
|
| 14 * |
15J197 |
BUSHING, lower (246831) |
|
| 14 |
15B079 |
BUSHING, piston (246832) |
|
| 15 |
156593 |
O-RING; BUNA-N (246830) |
|
| 15 * |
156633 |
O-RING; BUNA-N (246831) |
|
| 15 |
160325 |
O-RING; BUNA-N (246832) |
|
| 16 |
105444 |
BALL, piston;sst; 0.3125 in. (8 mm) (246830) |
|
| 16 * |
101947 |
BALL, piston;sst; 0.375 in. (10 mm) (246831) |
|
| 16 |
107203 |
BALL, piston;sst; 0.5625 in. (14 mm) (246832) |
|
| 17 |
15B075 |
BUSHING, rod (246830) |
|
| 17 * |
15B074 |
BUSHING, rod (246831) |
|
| 17 |
15B076 |
BUSHING, rod (246832) |
|
| 18 |
15J196 |
BUSHING, pump (246831) |
|
| 19 |
15C569 |
NUT, packing (246830) |
|
| 19 † |
15C571 |
NUT, packing (246831) |
|
| 19 |
15C573 |
NUT, packing (246832) |
|
| 20 |
117447 |
SEAL, u-cup, throat; UHMWPE (246830) |
|
| 20 * |
117446 |
SEAL, u-cup, throat; UHMWPE (246831) |
|
| 20 |
117448 |
SEAL, u-cup, throat; UHMWPE (246832) |
|
| 22 |
118377 |
RING, retaining (246830) |
|
| 22 * † |
118378 |
RING, retaining (246831) |
|
| 22 |
118379 |
RING, retaining (246832) |
|
| 23 |
15B661 |
TOOL, installation, seal (246830 only); not shown; part of Repair Kit 246420 |
|
| 24 |
118381 |
O-RING; fluoroelastomer (246830) |
|
| 24 * † |
107563 |
O-RING; fluoroelastomer (246831) |
|
| 24 |
118403 |
O-RING; fluoroelastomer (246832) |
|
| 25 |
118374 |
SPRING (246830) |
|
| 25 † |
118375 |
SPRING (246831) |
|
| 25 |
118375 |
SPRING (246832) |
|
| 26 |
118380 |
O-RING; fluoroelastomer (246830) |
|
| 26 * † |
110955 |
O-RING; fluoroelastomer (246831) |
|
| 26 |
C20111 |
O-RING; fluoroelastomer (246832) |
|
| 27 |
107563 |
O-RING; fluoroelastomer (246830) |
|
| 27 * † |
103414 |
O-RING; fluoroelastomer (246831) |
|
| 27 |
111178 |
O-RING; fluoroelastomer (246832) |
|
| 28 |
15C570 |
PISTON, wet-cup, ISO (246830) |
|
| 28 † |
15C572 |
PISTON, wet-cup, ISO (246831) |
|
| 28 |
15C574 |
PISTON, wet-cup, ISO (246832) |
|
