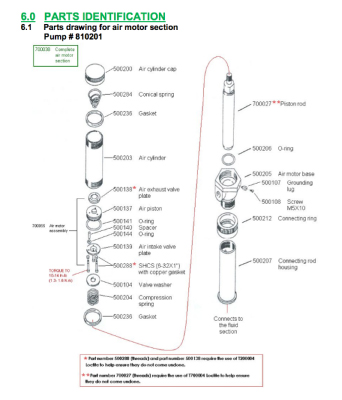

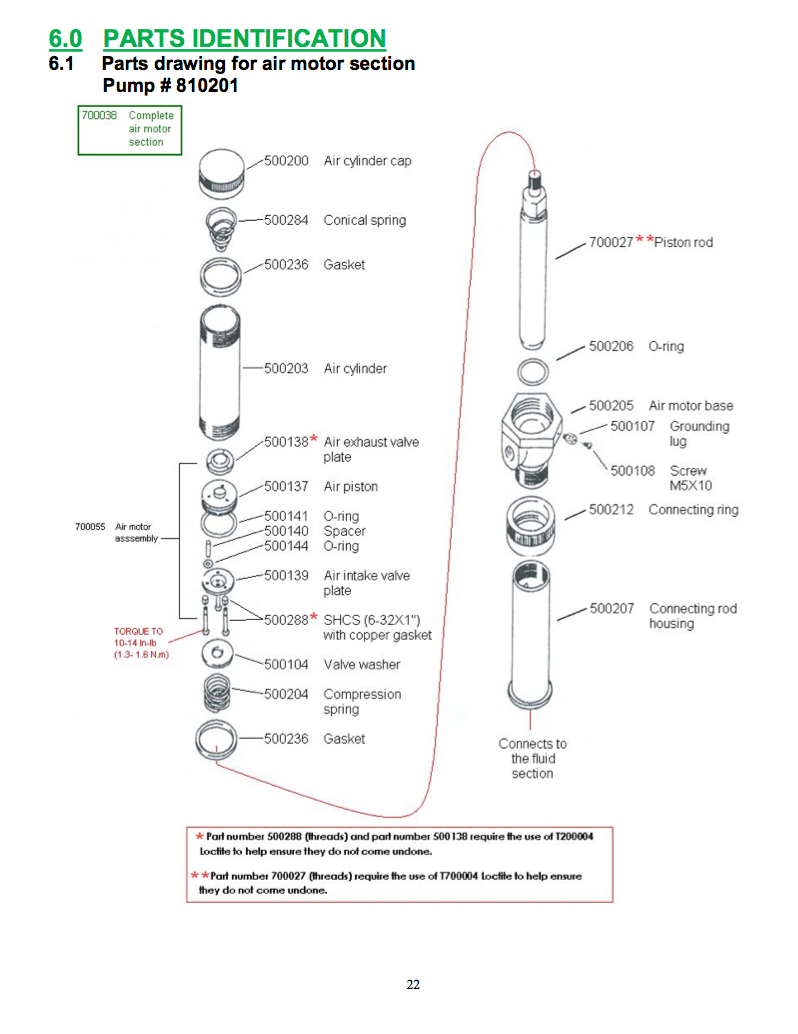

2:1 Ratio Transfer Pump | Air motor section pump # 810201

Graco IP-02 Polyurethane Transfer Pump

(click to zoom)

Browse Our List to find the manual or part that you need

Ref.	Part	Description	QTY.
	500200	Air cylinder cap
	500284	Conical spring
	500236	Gasket
	500203	Air cylinder
	500138	Air exhaust valve plate
	500137	Air piston
	500141	O-ring
	500140	Spacer
	500144	O-ring
	500139	Air intake valve plate
	500288	SHCS (6-32X1") with copper gasket
	500104	Valve washer
	500204	Compression spring
	500236	Gasket
	700027	Piston rod
	500206	O-ring
	500205	Air motor base
	500107	Grounding lug
	500108	Screw M5X10
	500212	Connecting ring
	500207	Connecting rod housing

Name

Email

Phone

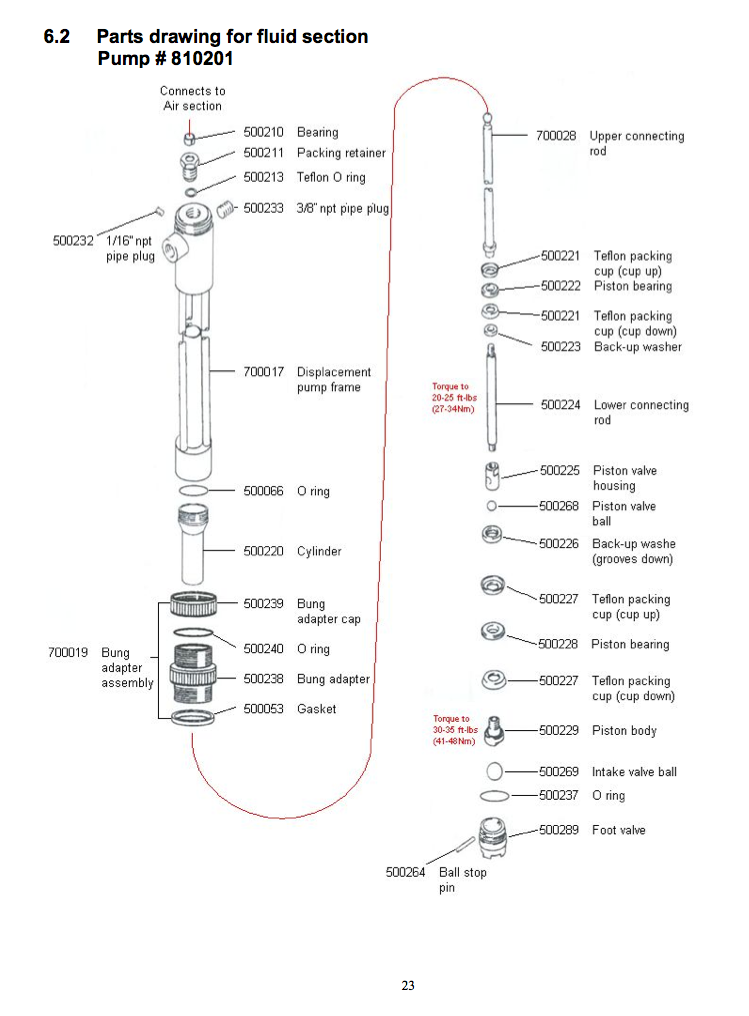

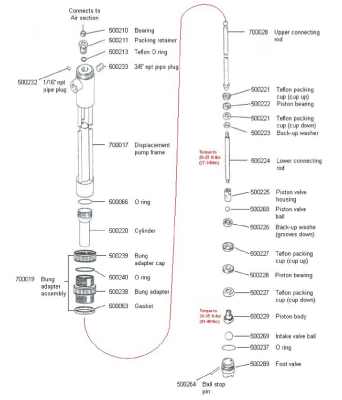

2:1 Ratio Transfer Pump | Fluid section pump # 810201

(click to zoom)

Ref.	Part	Description	QTY.
	500210	Bearing
	500211	Packing retainer
	500213	Teflon O-ring
	500233	3/8" npt pipe plug
	500232	1/16" npt pipe plug
	700017	Displacement pump frame
	500066	O-ring
	500220	Cylinder
	500239	Bung adapter cap
	500240	O-ring
	500238	Bung adapter
	500053	Gasket
	700028	Upper connecting rod
	500221	Teflon packing cup (cup up)
	500222	Piston bearing
	500221	Teflon packing cup (cup down)
	500223	Back-up washer
	500224	Lower connecting rod
	500225	Piston valve housing
	500268	Piston valve ball
	500226	Back-up washer (grooves down)
	500227	Teflon packing cup (cup up)
	500228	Piston bearing
	500227	Teflon packing cup (cup down)
	500229	Piston body
	500269	Intake valve ball
	500237	O-ring
	500289	Foot valve
	500264	Ball stop pin
